Explosion-proof type fire limit breaker

Name: Explosionproof type fire limit breaker
Brand: Lang Tai
Price: 1 USD

Wholesale Explosion-proof type fire limit breaker from china suppliers

Brand Name : Lang Tai

Model Number : HB(BCD)

Certification : CE /ISO/GOST

Place of Origin : Changyuan, China（mainland）

MOQ : 1set

Price : consult

Payment Terms : Western Union, L/C, D/A

Supply Ability : 200 sets per day

Delivery Time : 15

Packaging Details : Packaging Details: By container or Bulk Ship based on principle of keeping package safety and reducing cost. 1.Main electric parts are packed by damp proof wooden case to protect from damage caused by humidity and corrosion; 2.Other parts are packed as sta

model : BCD

Lifting capacity : 6t-9m

rise : 6-9-12-18

colour : Green or customized

purpose : Chemical workshop or flammable and explosive environment

Power Supply : 3-phase 380v-660v

application environment : Use in inflammable, explosive and gas explosive environment

Operation mode : Handle button, explosion proof remote control

Contact Now

Introduction of explosion proof electric hoist

Fire break limit device is widely used in monorail electric hoist, driving and other lifting equipment, fire break limit device is composed of limit bar, limit block, controller

Specifications, main technical parameters and dimensions of explosion proof electric hoist
model			BCD B MD
Lifting capacity			t		0.5	1	2	3	5	10	16
Lifting height			m		6/9/12	6/9/12/18/24	6/9/12/18/24	6/9/12/18/24	6/9/12/18/24	6/9/12/18/24	6/9/12/18/24
Lifting speed (fast / slow)			M / min		8(0.8)	8(0.8)	8(0.8)	8(0.8)	8(0.8)	8(0.8)	4(0.4)
running speed			M / min		10	10	10	10	10	10	10
a wire rope		Rope diameter	mm		4.8	7.4	11	13	15.5	15.5	17.5
a wire rope		Filament diameter	mm		0.22	0.34	0.5	0.6	0.7	0.7	0.7
		structural style	mm		D-6*37+1	D-6*37+1	D-6*37+1	D-6*37+1	D-6*37+1	D-6*37+1	D-6*37+1
I-beam track model (gb706-65)					16~28b	16~28b	20a~32c	20a~32c	25a~63c	25a~63c	25a~63c
Minimum radius of circular track (m)					1.5	1.5/2/3/4	2/2.5/3/4	2/2.5/3/4	2.5/3/4/5	2.5/3.5/6/7.5	2.5/3.5/6/7.5/9
Lifting motor	model				BZD21-4	BZD21-4	BZD31-4	BZD32-4	BZD41-4	BZD51-4	BZD51-4
	capacity			kw	0.8	1.5	3	4.5	7.5	13	13-18.5
	speed			RPM	1380	1380	1380	1380	1380	1380	1380
	Power Supply			v	3-380	3-380	3-380	3-380	3-380	3-380	3-380
Run the motor	model				BZDY11-4	BZDY11-4	BZDY12-4	BZDY12-4	BZDY21-4	BZDY21-4	BZDY21-4
	capacity			kw	0.2	0.2	0.4	0.4	0.8	0.8*2	0.8*2
	speed			RPM	1380	1380	1380	1380	1380	1380	1380
	Power Supply			v	3-380/660	3-380/660	3-380/660	3-380/660	3-380/660	3-380/660	3-380/660

Explosion-proof type fire limit breaker

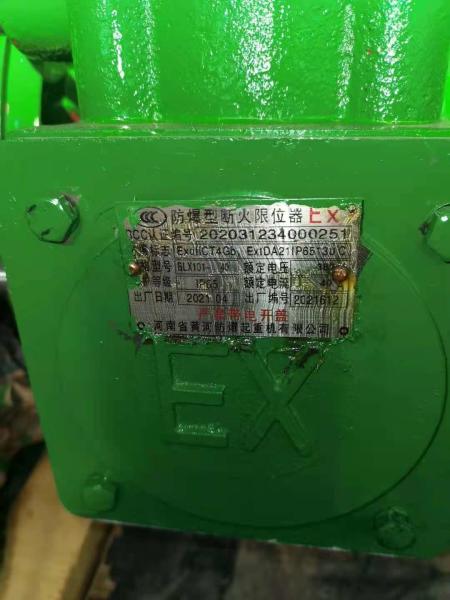

Explosion-proof type fire limit breaker Images
